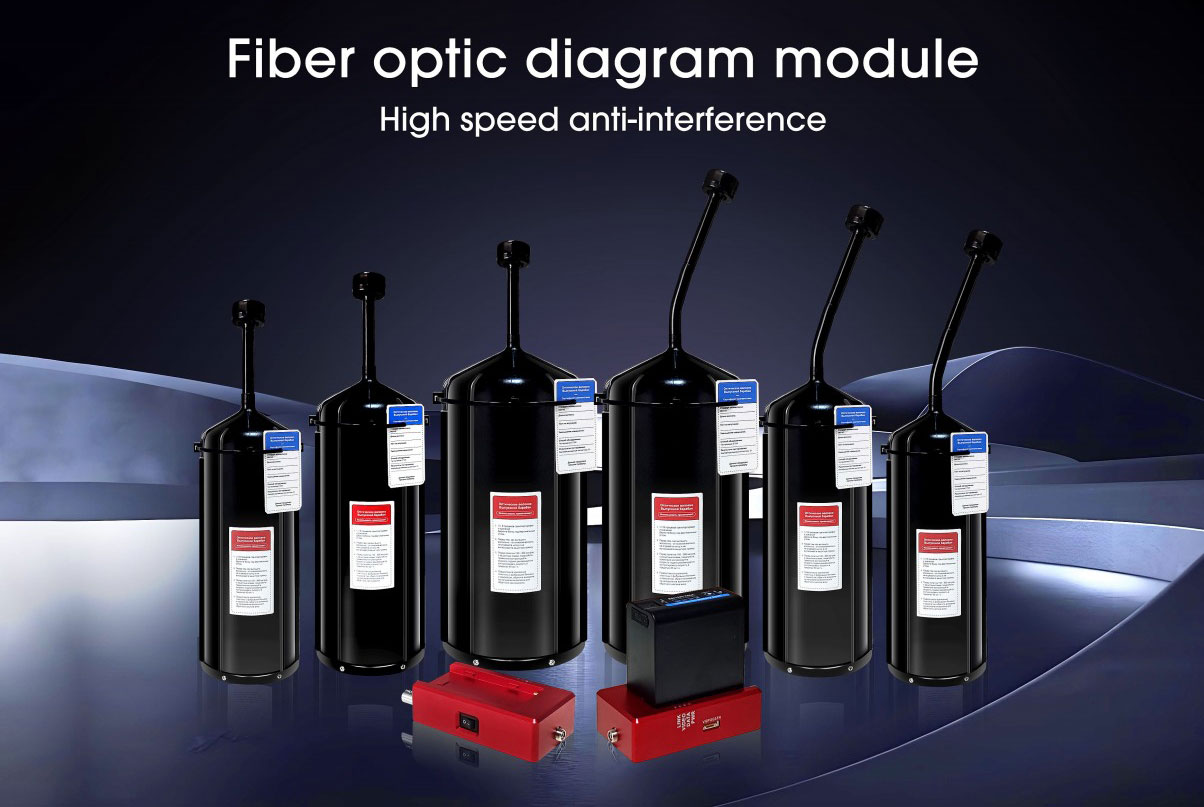

Fiber optic image and digital module adopts fiber optic as the transmission medium, fast transmission speed, strong stability, can meet the demand for large data transmission, not subject to the influence of electromagnetic interference, to prevent eavesdropping and eavesdropping, can support up to 20km wired signal transmission.
Designed for Your Comfort
Anti-interference
Stable and reliable
0~20km long-distance communication
Ignore terrain
Prevent eavesdropping and data theft
High-speed transmission of big data

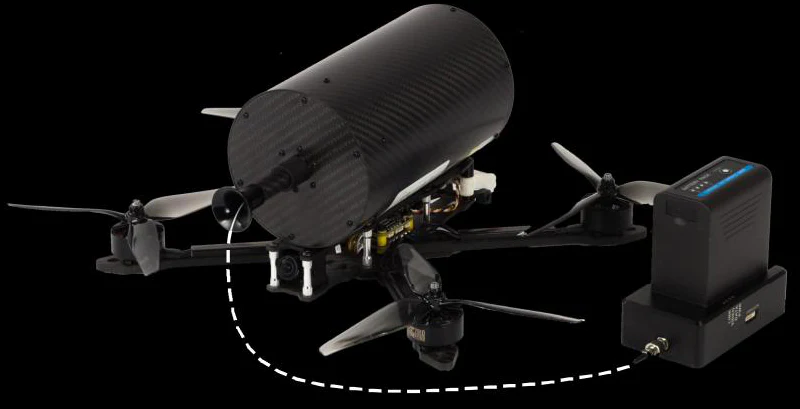

Lightly loaded with hardcore gear
Ultra-lightweight airborne SKY sky-side fiber optic disk module
The 1km fiber optic disk weighs 340 grams, the 3km fiber optic disk weighs 800grams, and the 5km fiber optic disk weighs 1250 qrams.
Pipe Crawling Robot Newsletter
The complexity of the city’s official website, short-wave communication is difficult to coverall the scenes, the use of fiber-optic communication, high-speed and stable data transmis-sion, anti-jamming ability, low loss oflong-distance communication, lightweight and easyto carry, to improve the efficiency and safety of pipeline maintenance.

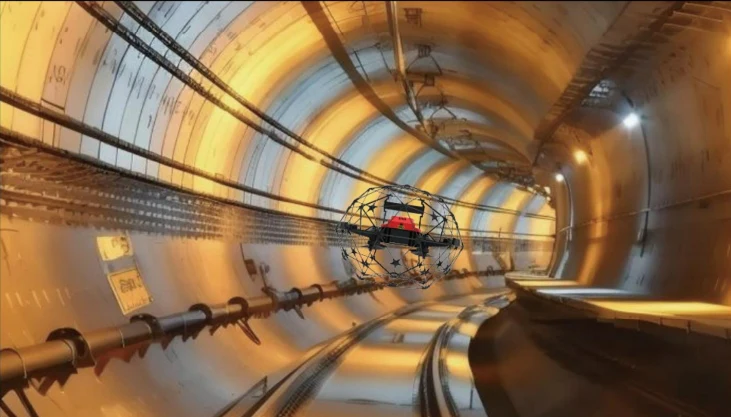

Indoor inspection drones
With the help of wired fiber-optic communication, the indoor inspection drone breaks throughthe limitations of short-wave transmission, iqnores the obstacles of the underground environ-ment, and realizes safe and stable mass data communication in complex terrain.
Underwater Robotics Newsletter
Fiber ontic communication in underwater robotics applications show significant advantagesthrough the optical signal transmission to achieve high-speed and stable data communication, regardless of the underwater environment interference, for underwater robots to pro.communication capabilities.vide long-distance,hiqh-capacity
Remote monitoring
Fiber optic remote monitoring is the use offiber optic high-speed, high-bandwidth characteristics, to achieve long-distance, high-definition, stable video transmission and monitor.ing. lt has the advantages of strong anti-interference ability, cear picture, etc. lt is suitablefor all kinds ofimportant places to monitor the demand, to ensure safety.

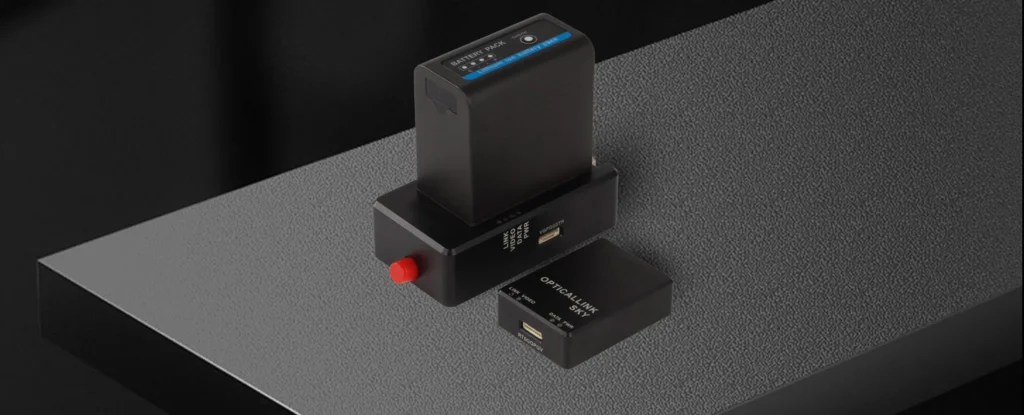

Diversified product compatibility

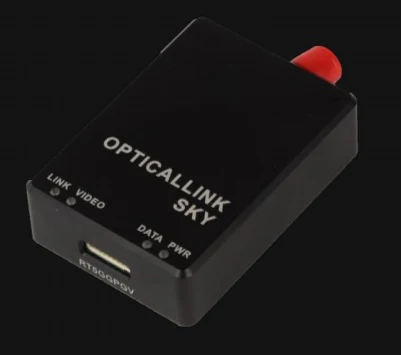

Fiber optic images and data Sky end
| Power supply: | DC 9V~26V (3~6S Battery) |
| Shell material: | aluminum alloy |
| Body size: | 74.5mm*38mm*19mm |
| Shell material: | aluminum alloy |
| Body weight: | 54g±2g |

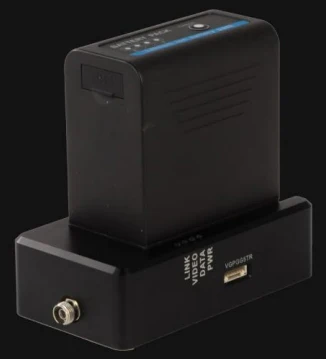

Fiber optic images and data Ground end
| Product name: | Fiber optic images anddata Ground end |
| Battery: | Li-ION 7.4V6600mAh |
| Body size: | 124mm*57.5mm*37.5mm |
| Shell material: | aluminum alloy |
| Body weight: | 186g±2g |
Diversified product compatibility
●Fiber optic interface: FC interface ●Fiber Type:Singlemode-Single ●Product Interface:GH1.25 ●Video format:NTSC/PAL/SECAM ●Data direction: bidirectional ●Data format:TTL/S.BUS ●Speed:0~1Mbps ●Wavelength single mode: 1310(9/125μm)+1550 ●Transmission distance: single mode fiber
| Power supply | 9V~24V ≤1A |
| Shell material | aluminum |
| Body size | 74.5mmx38mmx19mm |
| Body weight: | 54g士 2g |
| battery | Li-ion 7.4V6600mAh |
| Shell material | 335g |
| Body size: | aluminum |
| Body size: | 124mmx57.5mmx37.5mm |
| Body weight: | 186g±2g |
Supports more different fiber lengths
1 km light disk
Size:101.6mm(diameter)*274mm
Case material: ABS
Optical fiber specifications: 0.43mm
Weight: 600g(2km)/800g (3km)
Outlet nozzle: Aluminum alloy
Weight: 340g (1 km)
2/3km light disk
Size:101.6mm(diameter)*274mm
Case material: ABS
Optical fiber specifications:0.43mm
Outlet nozzle: Aluminum alloy nozzle, carbon tube 5cm
Weight:600g(2km)/800g (3km)
5km light disk
Size:101.6mm(diameter)*351Mm
Case material: ABS
Optical fiber specifications:0.43mm
Outlet nozzle: Aluminum alloynozzle, carbon tube 5cm
Weight:1250g (5km)

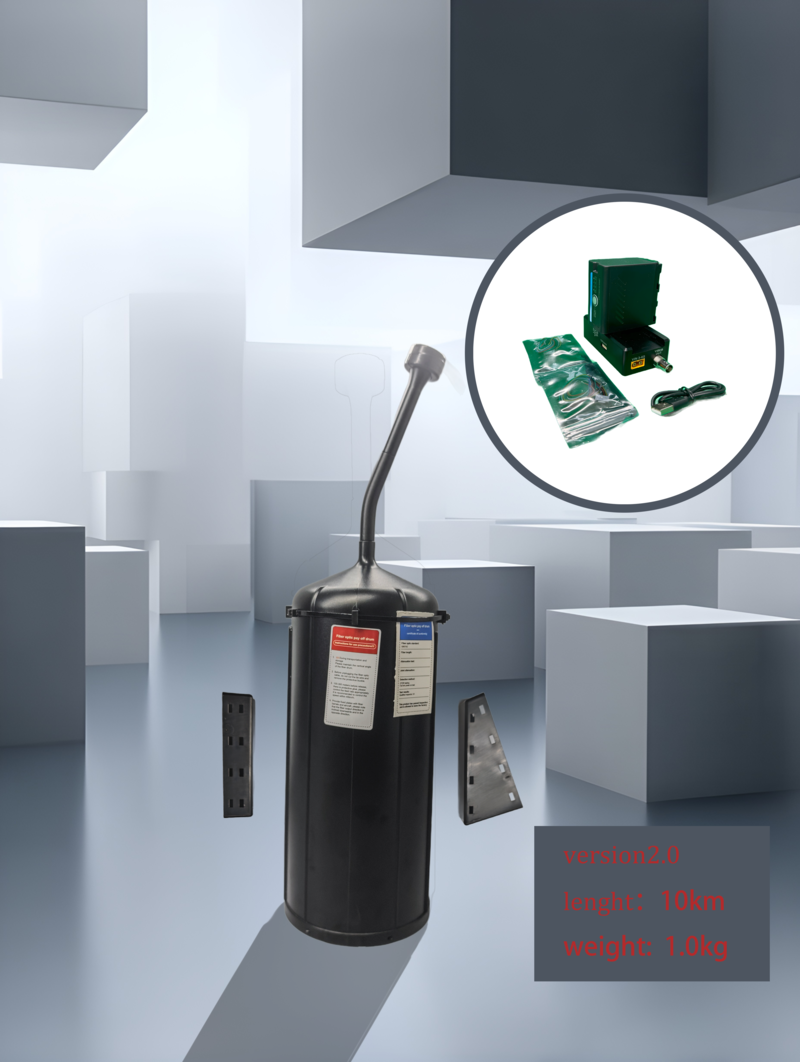

10km light disk
Size:142mm (diameter)*404 mm
Case material: Carbon fiber
Optical fiber specifications:0.43mm
Outlet nozzle: Aluminum
Weight:2450g(10km)
Ground-side wirelless Connection Method 1
①Schematic diagram of connection between ground end andreceiver and graph transmission
②Diagram of connection between sky terminal and flight control
Ground-side wirelless Connection Method 2
①,Opticallink GBD ground end and remote controlconnection diagram
