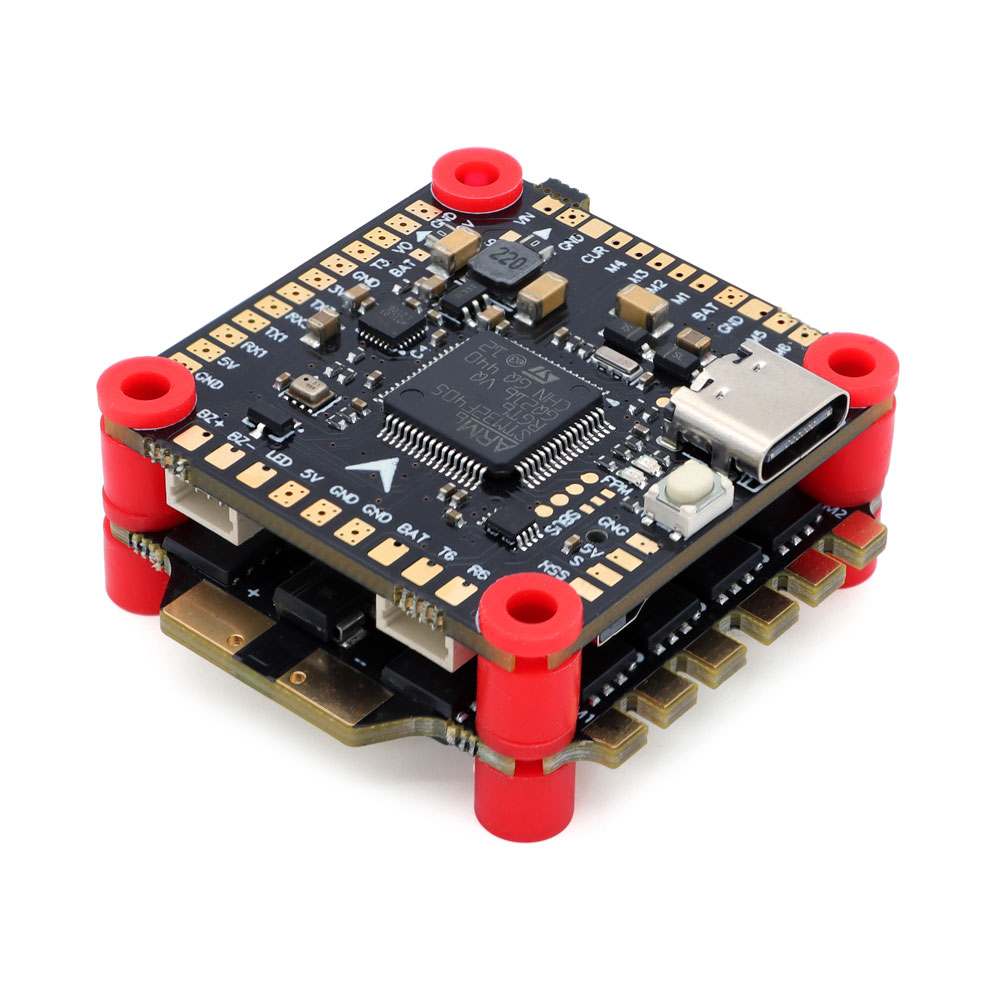

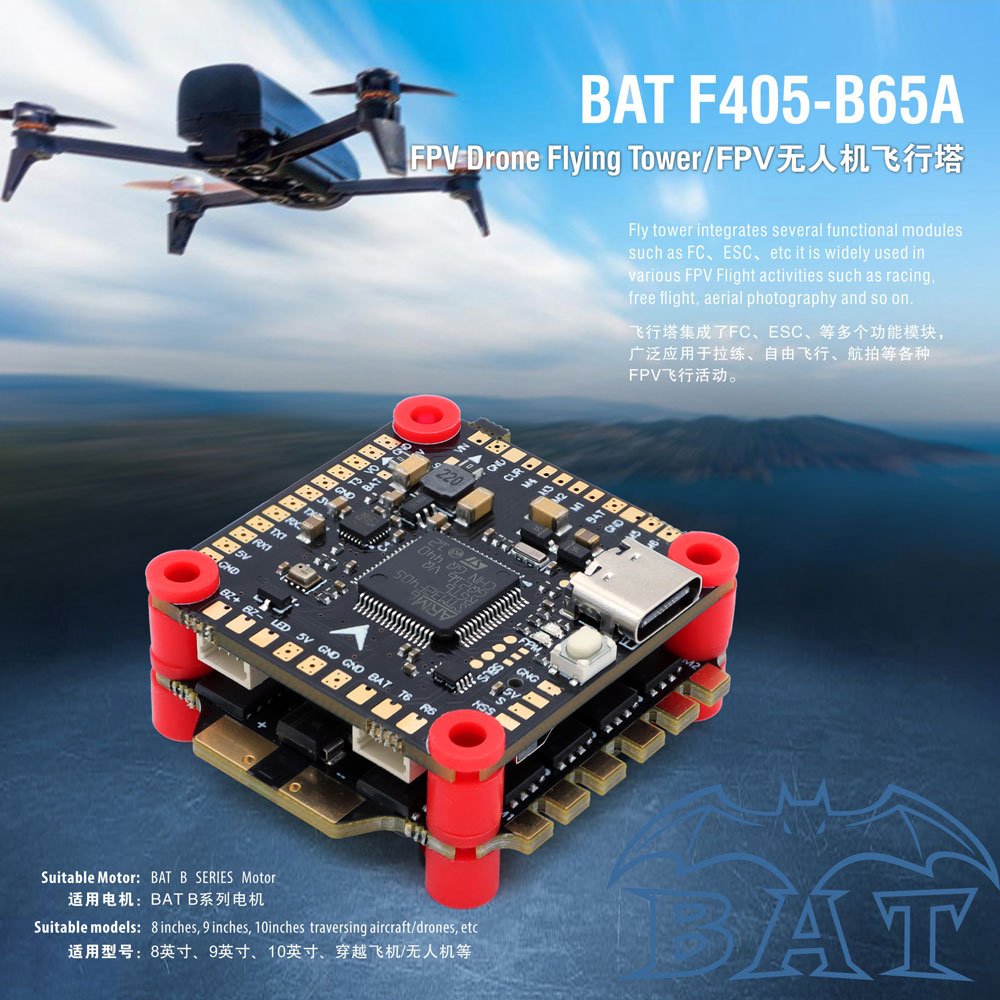

BAT F405-B55A Fly Tower Manual

                                                 Precautions (Must Read)

1.The flight controller has many integrated functions, and the components are very dense, so when installing, please do not use tools (such as needle-nose pliers or sleeves) to screw the nut, which is easy to scratch the fly tower hardware and cause unnecessary losses. The correct way is to press the nut with your finger and the screwdriver can quickly tighten the screw from the bottom. (Don’t be too tight to avoid damaging the PCB).

2.Do not install propellers when installing and debugging the flight controller, and try not to test the flight indoors to avoid safety accidents. Before installing the propeller for a test flight, please check again whether the motor steering and the direction of the propeller are correct. Safety Tips: Do not fly near crowds, the company is not responsible for all losses caused by the crash of the aircraft.

3.Do not use non-original aluminum columns or nylon columns to avoid damage to the flight control hardware, the official standard is a custom size nylon column to adapt to the tower.

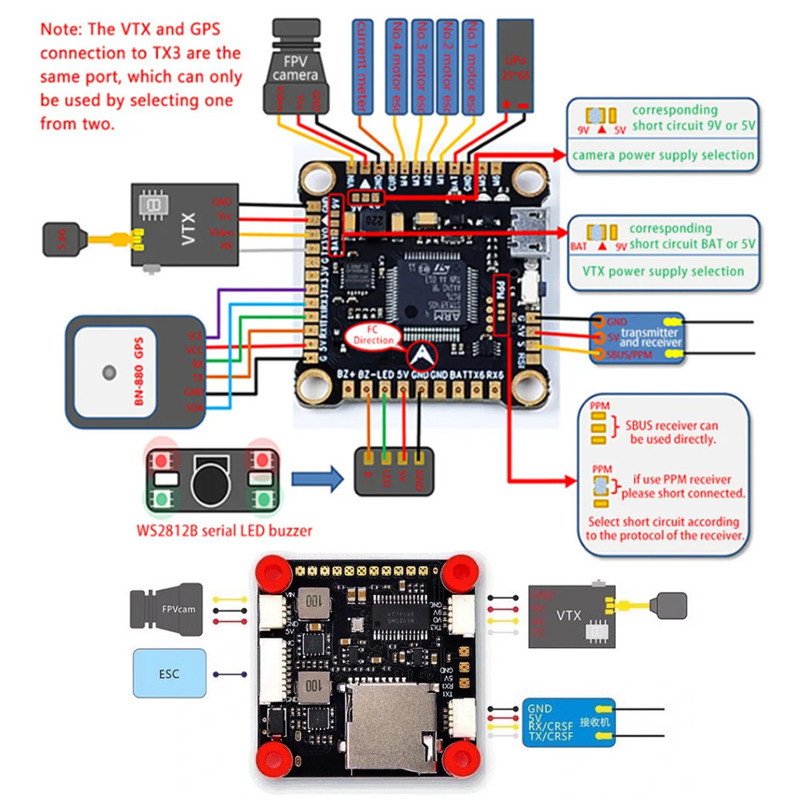

4.Before the aircraft is powered on, please check whether the installation between the plug-in connections of the flying tower is correct (the pin headers or cables must be aligned and installed), check whether the positive and negative poles of the welding are correct, and check whether the motor screws are against the motor stator to avoid short circuit.

Check whether there is any solder thrown out on the electronic components of the flying tower, which may cause a short circuit, if the short circuit occurs in the installation of soldering, the buyer shall be responsible for it.

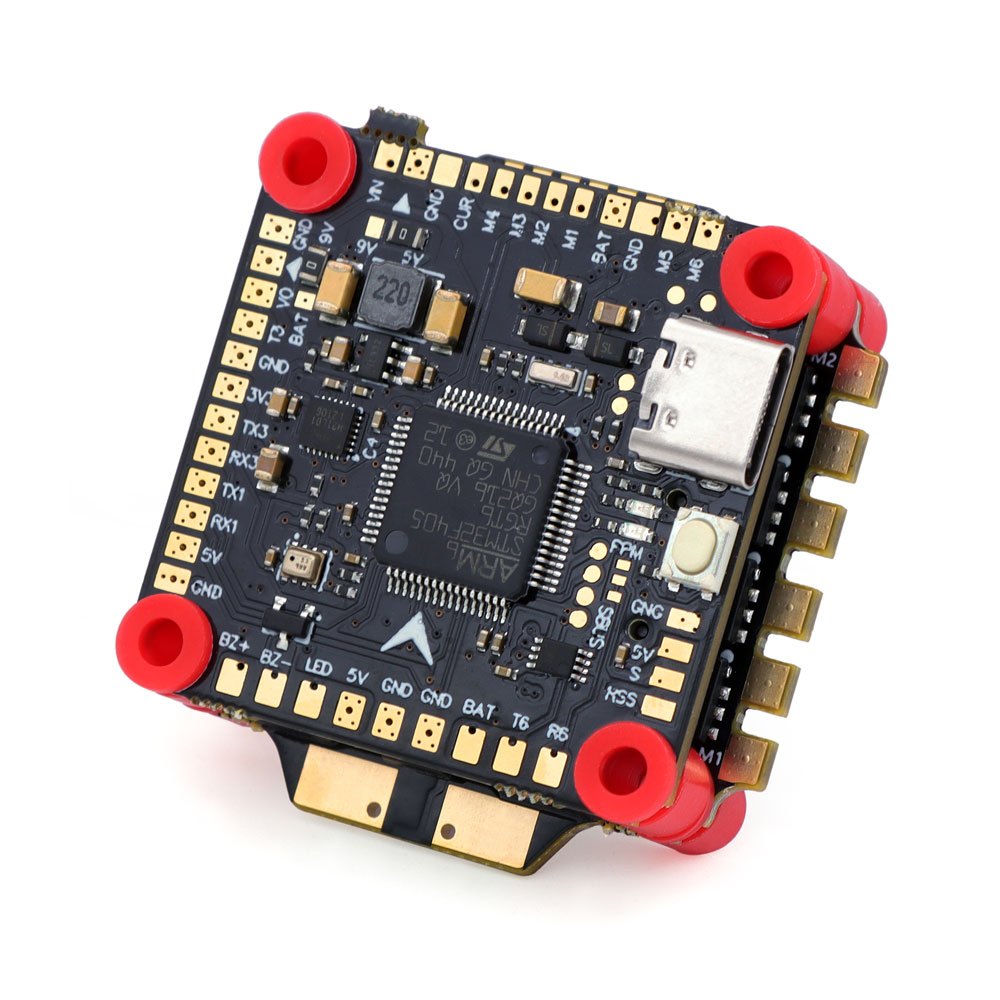

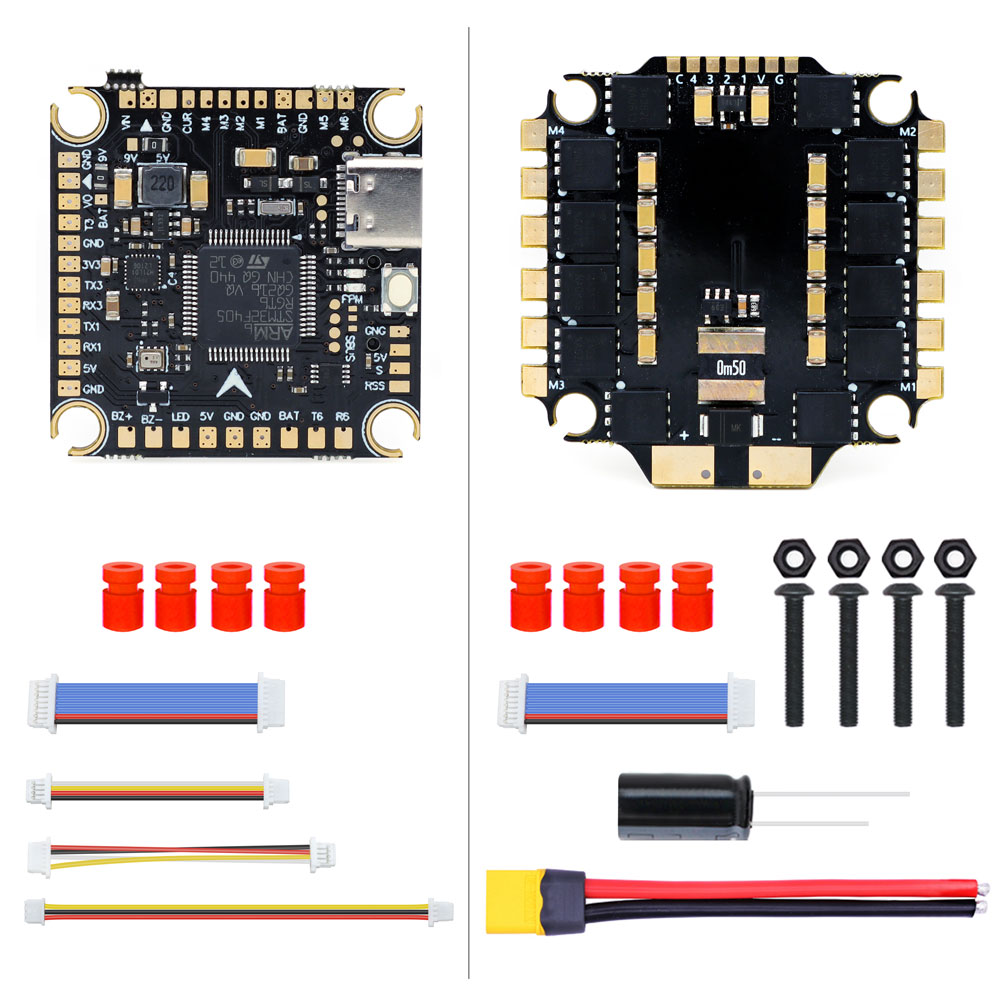

F405 Flight Control FC:-

Project Name: F405 Flight Controller
Size: 36x36mm
Weight: 13g
Installation hole: 30.5×30.5mm
STM32 F405 microcontroller
Dshot support
Drag and drop OSD configured through Betaflight
Gyroscope: MPU6500
Supports receivers such as ELRS/CRSF/SBUS/IBUS PPM/Spketorum DSMX, etc
MicroSD card black box
BEC: 5V3A/9V3A
Car video filter
Suitable models: 5 inches, 6 inches, 7 inches, 8 inches, 9 inches, 10 inches, 13 inches, 15 inches, traversing aircraft/drones, etc
Firmware: OMNIBUSF4SD/BF/INAV (upgradable)

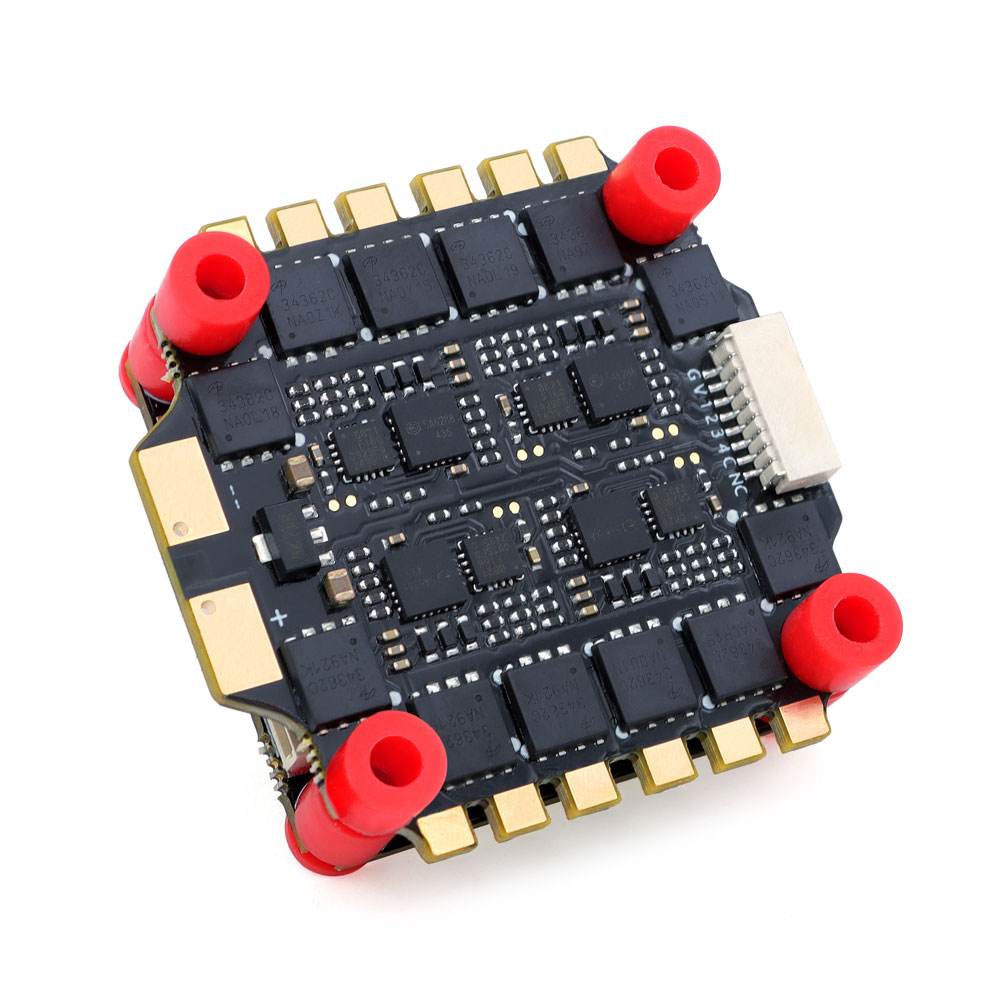

B65A 4in1 ESC HV 2-6S:-
Size: 41 * 39 * 5mm
Aperture: 30.5 * 30.5mm
Firmware: BLHELI-S J_H_30_REV16_7
Weight: 15g
Input voltage: LIPO 2-6S
Continuous current: 65A
Maximum current: 75A (10 seconds)
Processor: EF8BB21
Drive signal support: DShot150-300-600/Multishot/Oneshot/PMW
Current sensor: supports
